IP67 Electric Motors: Features, Ratings, and Use in Harsh Environments
Table of Contents
IP67-rated motors are built for harsh environments, offering excellent dust and water resistance. Widely used in sanitation vehicles, tunneling machinery, and marine equipment, these motors ensure reliable performance under extreme conditions. This article explains the meaning of IP67, test procedures, design characteristics of such motors, and application examples using the MSP38 series—helping engineers and system integrators select dependable sealed drive solutions.
What Is an IP Rating and Why Does It Matter for Motors?
Definition
The Ingress Protection (IP) rating, as defined by the IEC 60529 standard, classifies the degree of protection an enclosure provides against the intrusion of solid particles (like dust) and liquids (like water). It consists of two digits:
The first digit represents protection against solids
The second digit represents protection against liquids
Why IP67 Matters for Motors？
In environments such as mobile machinery, sanitation systems, or marine platforms, motors are often exposed to dust, mud, high-pressure water jets, and even temporary submersion. If the sealing level is insufficient, it may lead to short circuits, insulation breakdown of windings, condensation corrosion, brush failure, or bearing rust—all of which can result in motor failure.
An IP67 rating ensures that the motor can operate reliably under such tough conditions.

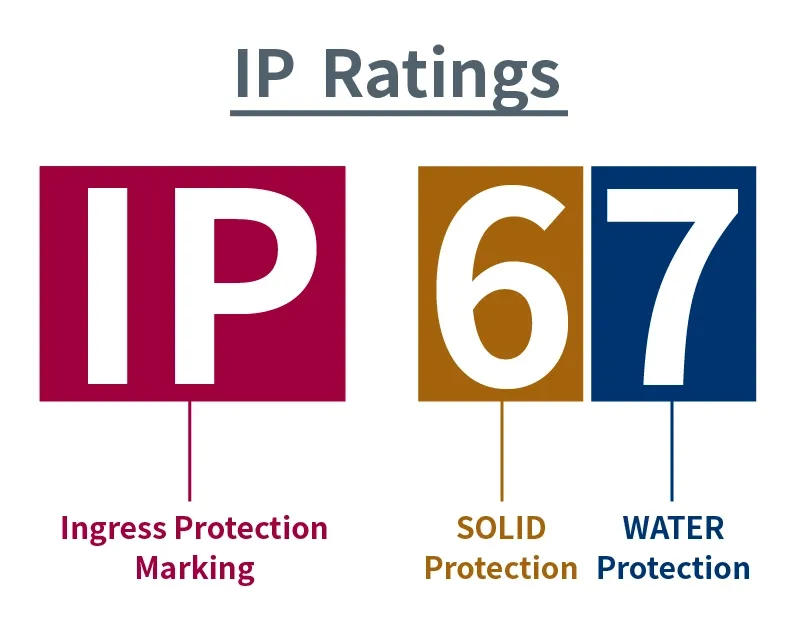

What Does IP67 Mean?
First digit (6): Complete protection against dust. The motor enclosure must not allow dust particles to enter that could affect functionality, as verified by a talcum powder test.
Second digit (7): Protection against immersion. The device must withstand immersion in water for 30 minutes, with the top of the unit submerged up to 1 meter, and with water temperature not differing by more than 5°C from the device.
Design Features of IP67 Electric Motors
Sealing Structure
Uses O-rings and multi-layer sealing. Some models incorporate internal pressure equalization designs to improve sealing performance under immersion conditions.
Housing Material
Depending on the application, either die-cast aluminum or stainless steel is used, with anodizing, electrophoretic coating, or other corrosion-resistant treatments to enhance durability.
Thermal Management
Designed for continuous full-load operation with efficient heat dissipation. Some models feature internal heat-conductive structures or cooling channels for improved thermal stability.
Operating Temperature Range
-40°C to +85°C, ensuring stable operation in both cold and hot environments.
Waterproof Connectors
Equipped with IP67-rated M12 or M23 circular aviation connectors; customizable overmolded cable outlets are also available for improved vibration resistance and connection reliability.
Application Examples: MSP38 Series Motors
SonnePower’s MSP38 series offers high-reliability IP67 rated electric motors built for harsh environments. Designed for mobile machinery, sanitation, tunneling, and marine use, these motors feature compact structure, sealed housings, and wide operating temperatures (-40°C to +85°C). With brushless options and integrated feedback, the MSP38 series ensures stable performance across demanding applications.
MSP38-040S127X3000H210
MSP38-040S127X3000H210
Rated Output: 40 kW / 127 N·m / 3000 rpm
Peak Output: 48 kW / 200 N·m / 4500 rpm
Applications: Compact sanitation modules, drive wheels for mid-power AGVs

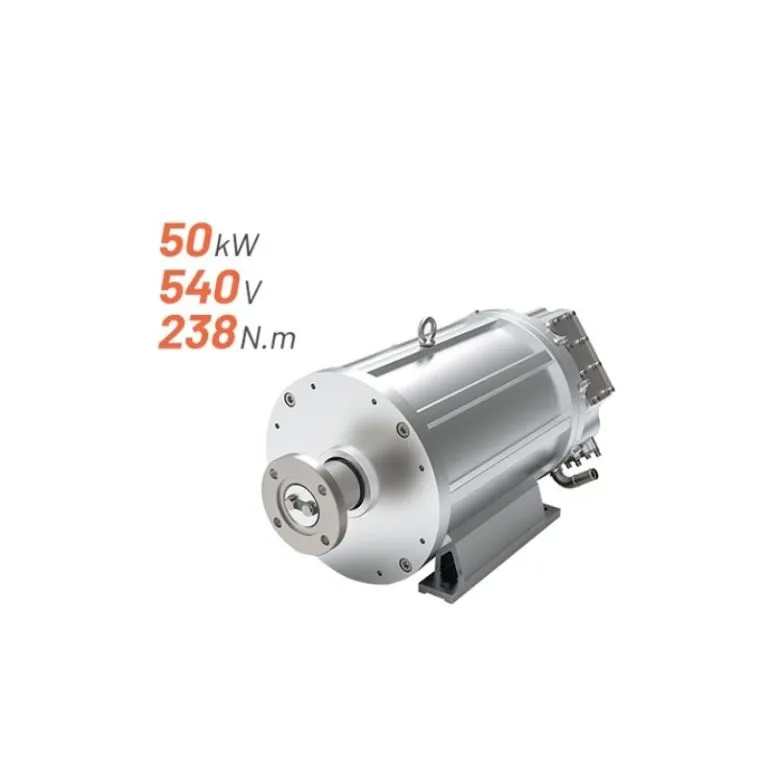

MSP38-050S238X2000H210
MSP38-050S238X2000H210
Rated Output: 50 kW / 238 N·m / 2000 rpm
Peak Output: 60 kW / 510 N·m / 3000 rpm
Applications: Mid-torque equipment such as automated tunnel spraying or small excavators

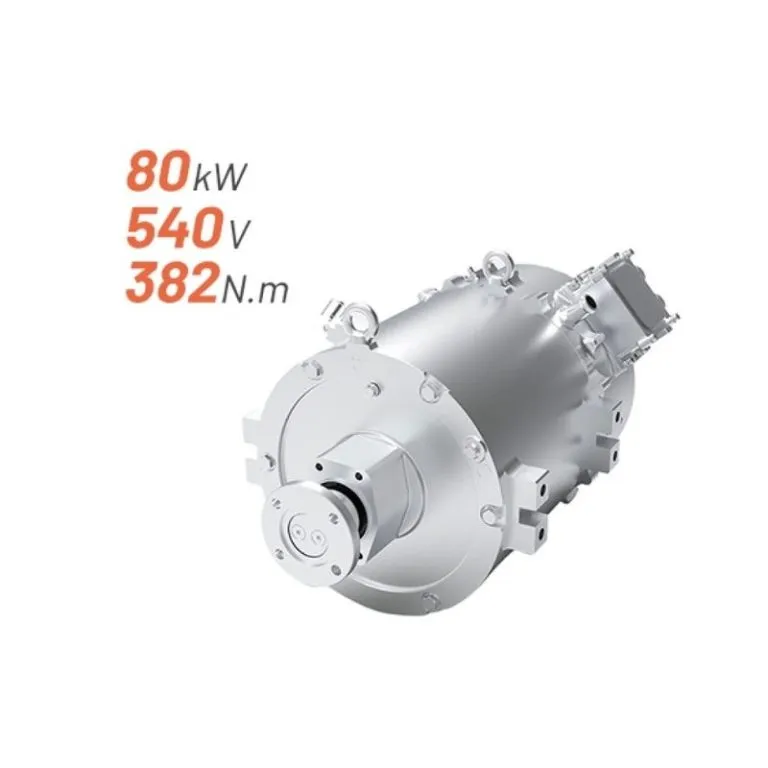

MSP38-080S382X2000H290
MSP38-080S382X2000H290
Rated Output: 80 kW / 382 N·m / 2000 rpm
Peak Output: 88 kW / 800 N·m / 3500 rpm
Applications: Heavy-duty drives for tunneling jumbos, hybrid construction machines

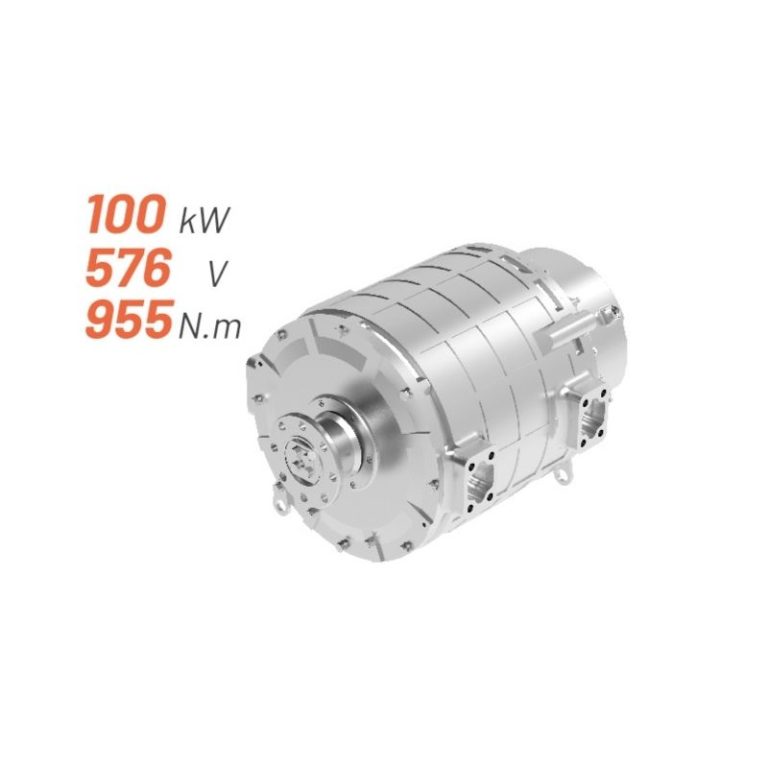

MSP38-100S955X1000H400
MSP38-100S955X1000H400
Rated Output: 100 kW / 955 N·m / 1000 rpm
Peak Output: 150 kW / 1700 N·m / 2500 rpm
Applications: Large-scale marine winches, electric deck handling systems
Conclusion
IP67 electric motors are ideal for engineering environments with challenging external conditions. They offer excellent environmental adaptability and operational reliability.
System integrators, application engineers, and purchasing managers should select IP67 drive solutions with robust sealing, optimized structural design, and reliable technical support based on the real-world demands of the application.
About Us | SonnePower Motor Solutions
SonnePower specializes in high-reliability electric drive systems for mobile machinery. Our MSP38 series motors feature IP67-rated sealed construction and are engineered for demanding environments including:
Intelligent sanitation equipment
Tunnel construction platforms
Marine propulsion and deck systems
AGV / AMR unmanned vehicles
The motors are available in various voltages, mounting configurations, and communication interfaces, widely serving industries such as new energy, construction equipment, unmanned logistics, and smart city infrastructure.
