4.3″ Rugged Industrial CAN Bus Display for Mobile Machinery
SonnePower’s 4.3-inch CAN Bus display offers IP65 front protection, ≥400 cd/m² brightness, and compact design—ideal for harsh outdoor use.Button icons can be customized.
It supports CoDeSys programming and ensures stable performance in off-road vehicles like construction, sanitation, and agricultural machinery.
Select Programmable CAN Bus HMI Display
Browse Sonnepower 4.3 Inch Vehicle Controller Screen

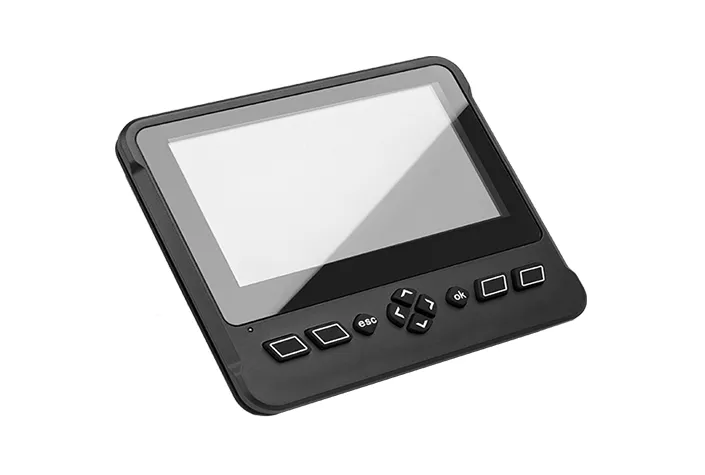

SPD-043-Ax
- Communication Interfaces: 2 × CAN
- Protocol:CANopen, J1939, and custom
- Programming Platform: Codesys 3.5
- Operating Temperature: -20°C to +70°C
- Protection Rating: IP65
- Brightness: ≥ 400 cd/m²
- I/O Resources: 8 channels (4 inputs / 4 outputs)
- Resolution:480×272
- Others:DDR3(2Gbit);Flash(4Gbit);FRAM(256Kbit)
SPD-043-B
- Communication Interfaces: 1 × CAN 1 × RS232
- Protocol:CANopen, J1939, and custom
- Programming Platform: Codesys 3.5
- Operating Temperature: -20°C to +70°C
- Protection Rating: IP65
- Brightness: ≥ 400 cd/m²
- I/O Resources: 34 channels (30 inputs / 4 outputs)
- Resolution:480×272
- Others:DDR3(2Gbit);Flash(4Gbit);FRAM(256Kbit)
SPD-043-Ex
- Communication Interfaces: 2 × CAN 1 × RS232 1×ETH
- Protocol:CANopen, J1939, and custom
- Programming Platform: Codesys 3.5
- Operating Temperature: -20°C to +70°C
- Protection Rating: IP65
- Brightness: 450 cd/m² 1000cd/m²
- I/O Resources: 8 channels (4 inputs / 4 outputs)
- Resolution:480×272/800×480
- Others:DDR4(8Gbit);Flash(64Gbit);FRAM(256Kbit),Support Wifi,USB
- Quick Start:5s
Frequently Asked Questions
Common questions about selecting and integrating a SonnePower 4.3-inch CAN bus display.
Which 4.3-inch CAN bus display configurations are available?
- SPD-043-Ax: two CAN interfaces and 8 local I/O channels.
- SPD-043-B Series: one CAN interface, one RS232 port, and 34 local I/O channels.
- SPD-043-Ex: two CAN interfaces with RS232, Ethernet, USB, Wi-Fi, and enhanced display options.
How do I choose between the three configurations?
Choose SPD-043-Ax for dual-CAN communication and balanced local I/O. Select the SPD-043-B Series when more local input channels are required. Choose SPD-043-Ex when the project requires Ethernet, USB, Wi-Fi, higher resolution, or higher brightness.
Which CAN protocols are supported?
The series supports SAE J1939, CANopen, and custom CAN communication. It can communicate with a third-party controller when the protocol, baud rate, CAN identifiers, and message definitions are compatible.
Does the series support CODESYS and interface customization?
Yes. The displays support CODESYS 3.5 for interface development, application programming, online monitoring, and commissioning. Screen layouts, data fields, gauges, menus, colors, button icons, and startup logos can be configured according to project requirements.
What resolution and brightness options are available?
SPD-043-Ax and the SPD-043-B Series provide 480 × 272 resolution and brightness of at least 400 cd/m². SPD-043-Ex is available with 480 × 272 or 800 × 480 resolution and 450 cd/m² or 1000 cd/m² brightness options.
How much local I/O is available?
SPD-043-Ax and SPD-043-Ex provide 8 local I/O channels, configured as up to 4 inputs and 4 outputs. The SPD-043-B Series provides 34 local I/O channels, configured as up to 30 inputs and 4 outputs.
How can I confirm the correct display configuration?
Send us your required CAN channels, communication protocol, local I/O, resolution, brightness, additional interfaces, customization requirements, and installation conditions. All models in this series provide IP65 front-panel protection.
