Product Description
SonnePower SPC-SDIO-S1200 & SPC-SDIO-S1212 Intelligent Distributed I/O Modules
SonnePower offers two 12-channel CAN bus I/O modules designed for high-performance, distributed control applications in harsh environments. Both modules feature a compact aluminum housing, IP67 protection, and support the CANopen protocol. Despite sharing similar form factors and core features, they are optimized for different control needs:

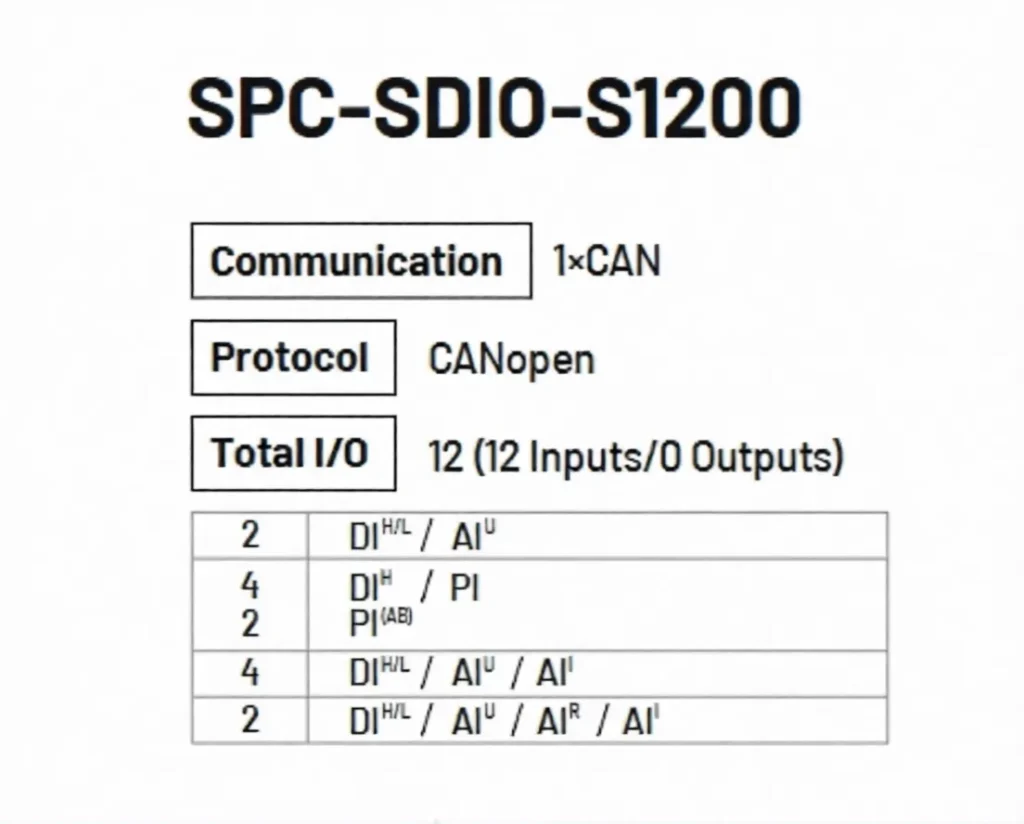

SPC-SDIO-S1200 is a pure input module with 12 input channels. It supports a wide range of input types including voltage, resistance, high/low-level signals, and pulse inputs—ideal for data acquisition and monitoring systems.

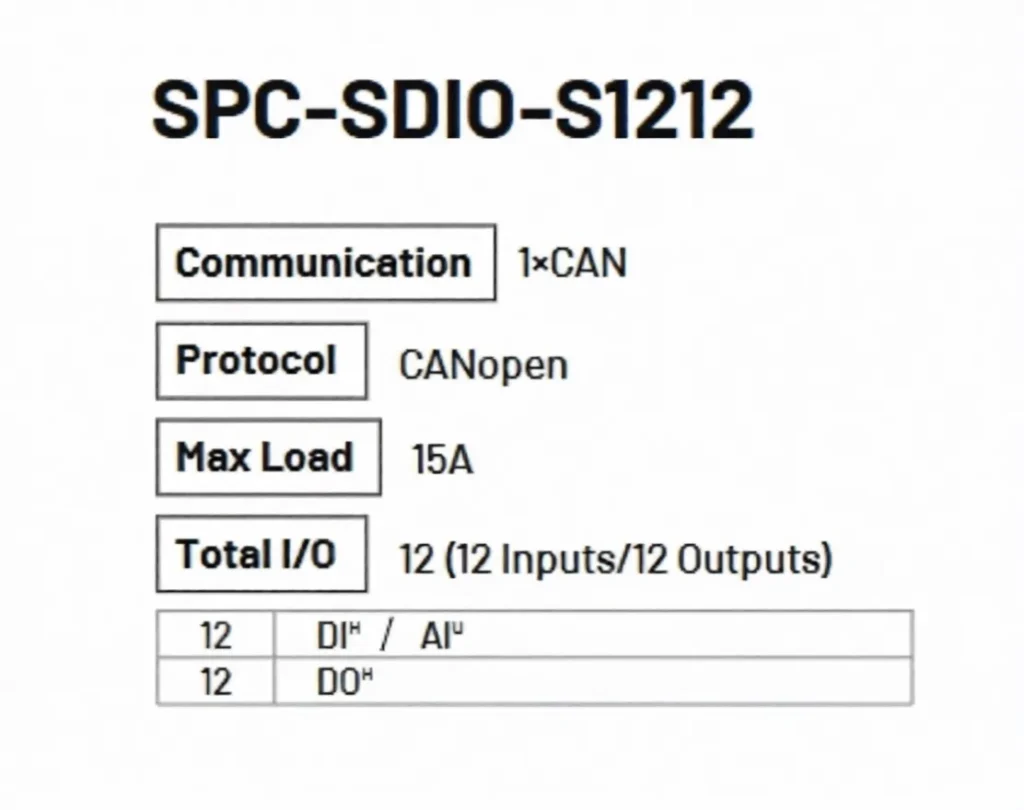

SPC-SDIO-S1212 is a versatile I/O module with both input and output capabilities. Its output ports (DOH 3A) can directly drive solenoid valves, making it suitable for controlling actuators in mobile machinery and hydraulic systems.
Specification

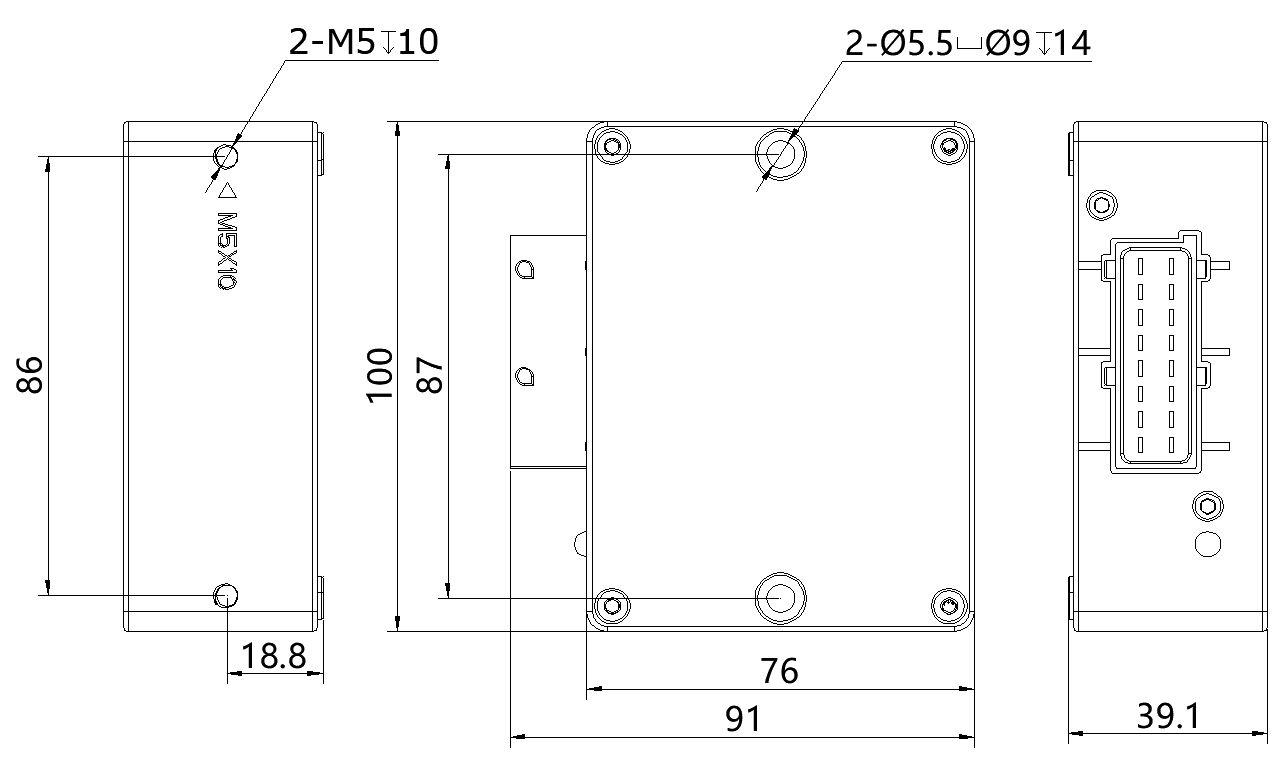

Dimensions
Application
Fire Trucks
Water Cannon Control: Manage high-pressure water pumps, monitor valve status, and control turret positioning through digital inputs.
Lighting System Monitoring: Input channels monitor signal switches for scene lights, beacons, and emergency strobes.
Ladder Operation Safety: Receive limit switch signals from extendable ladders and outriggers to ensure stable deployment.
Ambulances
Medical Equipment Power Status Monitoring: Track the status of onboard defibrillators, ventilators, and diagnostic tools through digital input signals.
Door and Ramp Sensor Inputs: Monitor access door positions, ramp deployment sensors, and locking mechanisms for patient safety.
Environmental Controls: Receive sensor input from HVAC systems to maintain a stable environment for medical operations.
Police and Command Vehicles
Communication Equipment Monitoring: Input signals from radio, surveillance, and satellite systems for system diagnostics.
Lighting and Siren Feedback: Monitor activation status of sirens, roof lights, and direction indicators.
Surveillance Module Integration: Feed status inputs from cameras, radar, and ANPR systems into the main controller.
Off-Road Rescue Vehicles (e.g., for disaster relief)
Chassis Stability Monitoring: Inputs from tilt sensors, gyros, and accelerometers for real-time stability feedback.
Winch and Crane Safety Checks: Receive feedback signals from crane limit switches and winch torque sensors.
Floodlight and Navigation Sensor Inputs: Manage auxiliary lights and sensors for night-time or poor-visibility operations.
