SPC-SFMC-X2424A Mobile Machinery Controller
SPC-SFMC-X2424A
| Parameter | Value |
|---|---|
| Working Voltage | 8–32 V DC |
| Communication | 2×CAN, 1×RS232 |
| Protection Class | IP67 |
| Total I/Os | 44 channels (24 Inputs / 24 Outputs) |
| Programming System | CoDeSys 3.5 |
Product Overview
The SPC-SFMC-X2424A is a programmable mobile machinery controller with 44 physical I/O resources. Its configurable channels support voltage, current, resistance, digital, frequency, PWM, and H-Bridge functions.
The controller provides two CAN interfaces and one RS232 port, supports CODESYS 3.5 programming, and operates from an 8–32 VDC power supply. Its IP67-rated die-cast aluminum housing is designed for installation in demanding mobile machine environments.
Specification
I/O Configuration
I/O Configuration
The SPC-SFMC-X2424A provides 44 physical I/O resources with configurable analog, digital, resistance, frequency, PWM, and H-Bridge functions. It can be configured with up to 24 inputs or up to 24 outputs.
Input Resources
| Channels | Available signal functions |
|---|---|
| 4 | 0–32 V analog or configurable digital input |
| 6 | 0–10 V analog or configurable digital input |
| 6 | Frequency or configurable digital input, up to 30 kHz |
| 6 | 4–20 mA, 0–15 V, or configurable digital input |
| 2 | Configurable digital input |
Output Resources
| Channels | Available signal functions |
|---|---|
| 16 | High-side digital or PWM output with current feedback |
| 4 | Configurable high-/low-side digital or PWM output |
| 2 pairs | The four high-/low-side channels can form two H-Bridges |
| 4 | High-side digital outputs shared with input channels X20–X23 |
| 1 | 0.6–5 V reference voltage output, up to 250 mA |
| 1 | 5 V or 10 V sensor supply output, up to 250 mA |
PWM and Output Control
The SPC-SFMC-X2424A provides configurable high-side, high-/low-side, PWM, and H-Bridge outputs for direct control of proportional valves, solenoids, relays, and other electrical loads.
16 PWM Outputs with Current Feedback
Sixteen high-side channels can operate as digital or PWM outputs. Current feedback from 0.1–2 A allows the controller application to monitor the connected load.
Configurable PWM Control
PWM frequency can be configured from 10–2000 Hz, with an adjustable duty cycle from 0% to 100%.
High-/Low-Side Outputs
Four channels can be configured as high-side or low-side digital and PWM outputs to match different load-driving requirements.
Two H-Bridge Pairs
The four configurable high-/low-side channels can be paired to form two H-Bridges for bidirectional load control.
CAN Communication and Programming
The SPC-SFMC-X2424A provides two CAN interfaces and one RS232 interface for communication with other electronic devices in a distributed machine control system.
2× CAN Interfaces
Two CAN 2.0A/B channels support configurable communication speeds from 10 kbit/s to 1 Mbit/s. The default baud rate is 250 kbit/s.
1× RS232 Interface
The point-to-point RS232 interface supports serial communication at up to 115200 bit/s.
CODESYS 3.5 Programming
CODESYS 3.5 supports control-logic development, controller configuration, application debugging, and software updates.
Protection and Diagnostics
The SPC-SFMC-X2424A includes channel protection and controller monitoring functions to help identify electrical faults and abnormal operating conditions.
Input Protection
All input channels include protection against reverse power and ground connection.
Digital Output Protection
Digital output channels include short-circuit feedback, short-circuit protection, and overtemperature protection.
Voltage Output Protection
The reference voltage output and fixed sensor-supply output include short-circuit protection.
Watchdog Monitoring
An internal watchdog function monitors controller operation and helps detect abnormal program execution.
LED Status Indication
| LED status | Controller condition |
|---|---|
| Off | System not powered |
| Blue, flashing at 1 Hz | Normal operation |
| Blue, continuously on | No runtime or application detected |
| Blue, flashing at 5 Hz | Fault detected |

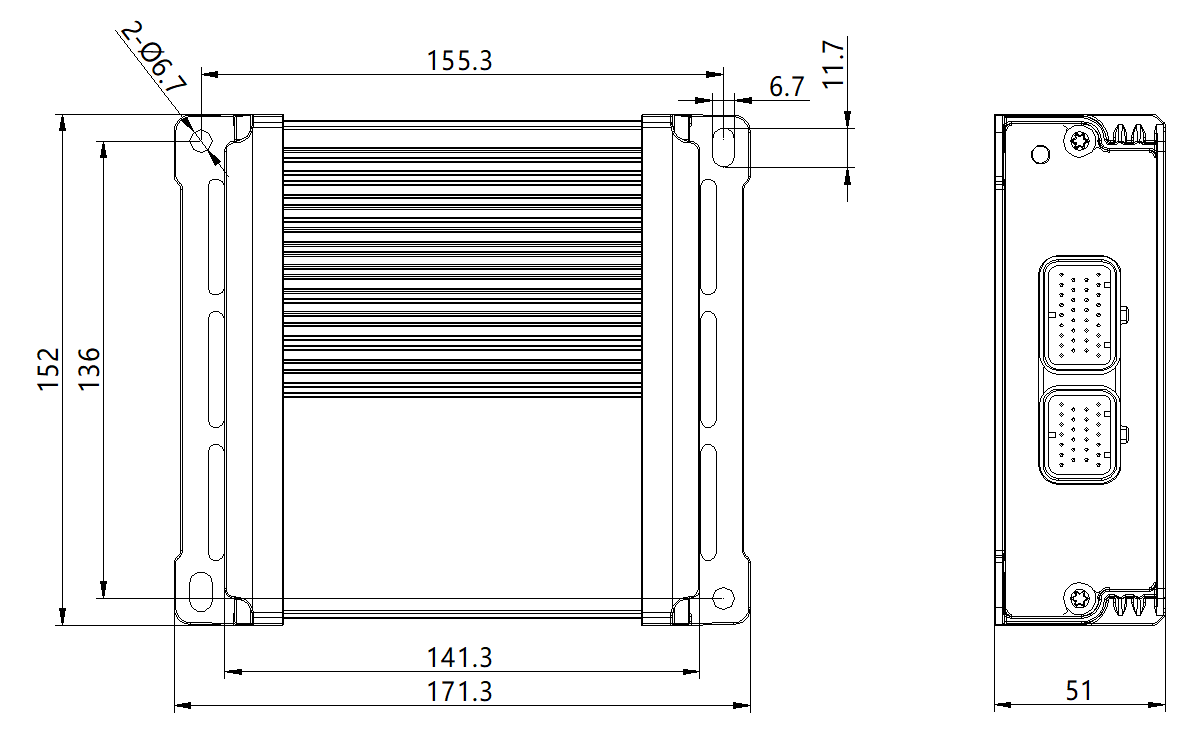

Dimensions
Frequently Asked Questions
How many I/O channels does the SPC-SFMC-X2424A provide?
The controller provides 44 physical I/O resources. It can be configured with up to 24 inputs or up to 24 outputs because four physical channels are shared between input functions X20–X23 and output functions Q20–Q23.
Can the SPC-SFMC-X2424A control proportional valves?
Yes. Sixteen high-side channels can operate as PWM outputs with 0.1–2 A current feedback. PWM frequency is configurable from 10–2000 Hz, and each channel supports a maximum rated drive current of 3 A.
Does the controller provide H-Bridge outputs?
Yes. Four channels can be configured as high-side or low-side digital and PWM outputs. These channels can be paired to form two H-Bridges for bidirectional load control.
Which CAN protocols does the X2424A support?
Its two CAN 2.0A/B interfaces support CANopen, SAE J1939, and user-defined protocols. Communication speed can be configured from 10 kbit/s to 1 Mbit/s.
Does the X2424A support frequency and encoder inputs?
Yes. Six channels support frequency inputs up to 30 kHz. Four of these channels can be configured as two quadrature encoder input pairs.
Which programming platform does the controller use?
The SPC-SFMC-X2424A supports CODESYS 3.5 for control-logic development, application configuration, and debugging.
What are the operating conditions of the X2424A?
The controller operates from an 8–32 VDC power supply and across a temperature range of −40°C to +85°C. Its shielded die-cast aluminum housing is rated IP67.
