Product Overview
The SPC-SFMC-X2424C is a programmable controller with 44 physical I/O resources for mobile machinery control systems. Its configurable channels support digital, voltage, current, resistance, pulse, PWM, and analog signal functions.
The controller provides two CAN interfaces and one RS232 interface for communication with other electronic devices. It supports CODESYS 3.5 programming, operates from an 8–32 VDC power supply, and uses an IP67-rated aluminum housing.
Specification
| Parameter | Value |
|---|---|
| Working Voltage | 8–32 V DC |
| Operation Temperature | -40 to +85℃ |
| Protection Class | IP67 |
| Weight | 1.0 kg |
| Housing Material | Cast aluminum shielded housing |
| Dimensions (L×W×H) | 171.3 × 155.3 × 51 mm |
| Assembly | 4 pcs M5 × 30 mm Screws |
| Connections | 60-Pin AMP Connector |
| Programming System | CoDeSys 3.5 |
| Communication Interfaces | 2 × CAN, 1 × RS232 |
| Total I/O | 44 channels (24 inputs / 24 outputs) |
| Input Configuration | Up to 24 configurable inputs |
| Digital Inputs | 24 × DIH/L |
| Analog Inputs | 16 × AIU, 6 × AII, 2 × AIR |
| Pulse Inputs | 6 × PI, 2 × PI(AB) |
| Digital Outputs | 24 × DOH |
| PWM Outputs | 20 × PWMH |
| Voltage Output | 1 × Vout (+5V / +10V, Max 250 mA) |
| Analog Output | 1 × AO (0.6–5V, Max 250 mA) |

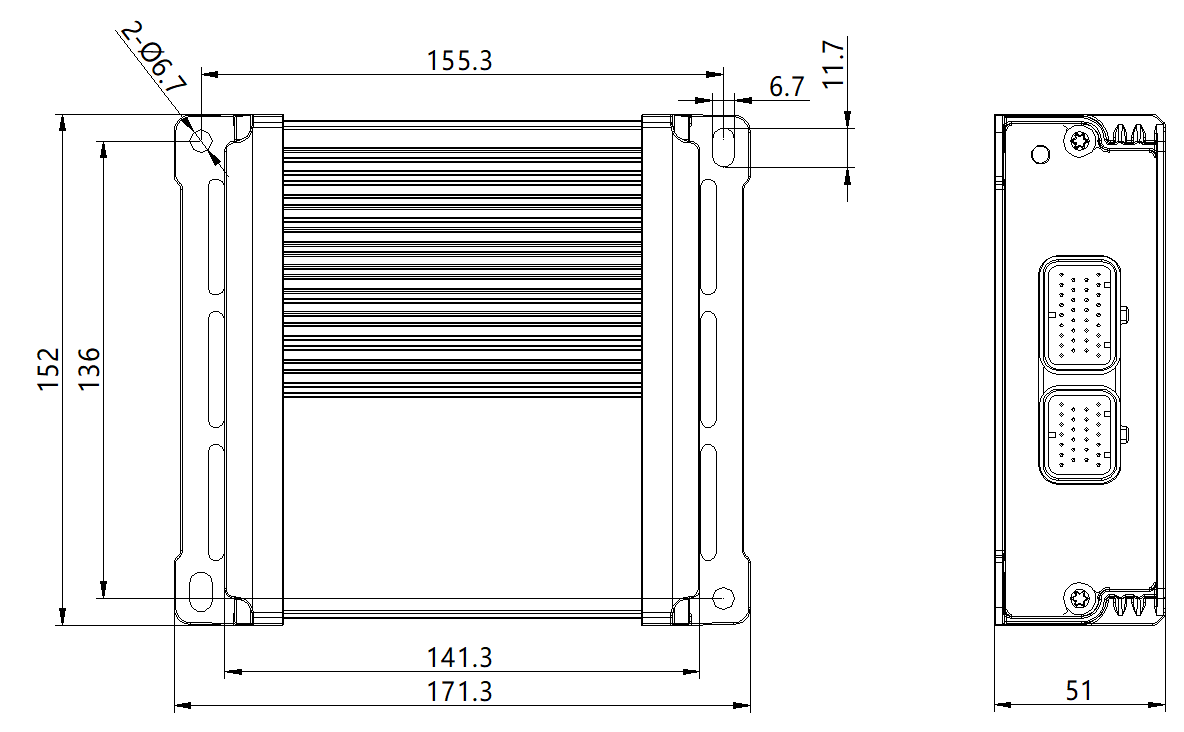

Dimensions
Application
-
Excavators
For controlling hydraulic arms, swing mechanisms, and bucket operations with real-time responsiveness and system diagnostics. -
Bulldozers
Manage engine performance, blade position, and traction control under heavy-duty workloads and vibration-intensive environments. -
Cranes and Aerial Lifts
Ensure safe and coordinated movement of lifting arms, hoists, and safety interlocks, supporting remote monitoring via CAN bus. -
Road Rollers and Compactors
Monitor and control vibration levels, engine operation, and compaction feedback for consistent performance on site. -
Pavers and Asphalt Machines
Regulate screed controls, temperature zones, and conveyor systems for high-precision surface laying. -
Drilling Rigs
Control drilling rotation, feed pressure, and motor synchronization in tough, dusty, and high-vibration conditions. -
Skid Steer Loaders and Wheel Loaders
Manage steering systems, hydraulic attachments, and operator interface with customized I/O logic.
