SPL0601 Programmable Mobile Machinery Controller
SPL0601
| Operating Voltage | 8–32 VDC |
|---|---|
| I/O Resources | 66 physical channels (38 inputs / 30 outputs) |
| Communication | 3×CAN, 4×RS232, 1×RS485, 1×Ethernet |
| Programming | CODESYS 3.5 |
| Protection Rating | IP67 |
Product Overview
The SPL0601 is an IP67 programmable controller designed for fire trucks, rescue vehicles, and other special-purpose mobile equipment. It provides 66 physical I/O points to connect pressure, level, temperature, position, speed, valve, pump, lighting, and auxiliary control circuits.
Three CAN interfaces, four RS232 ports, one RS485 port, and one Ethernet interface allow the controller to communicate with vehicle ECUs, displays, sensors, communication devices, and other machine subsystems. The controller supports CODESYS 3.5 programming and operates from an 8–32 VDC power supply.
Specification

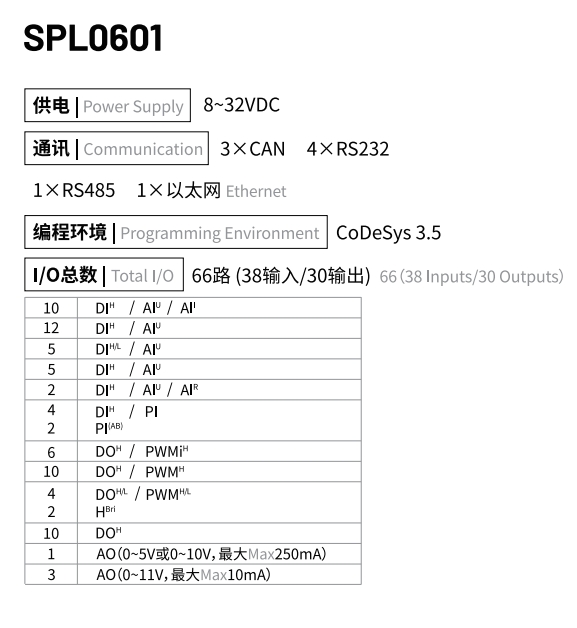

I/O Configuration
The SPL0601 provides 66 physical I/O resources with configurable analog, digital, resistance, frequency, PWM, and H-Bridge functions. This flexible signal mix allows the controller to connect directly to different sensors and actuators.
Input Resources
| Channels | Available signal types |
|---|---|
| 10 | 4–20 mA, 0–5 V, or digital input |
| 12 | 0–5 V or digital input |
| 5 | 0–10 V or configurable high/low-level digital input |
| 5 | 0–32 V or digital input |
| 2 | 16 Ω–10 kΩ, 0–5 V, or digital input |
| 4 | Frequency or digital input, including two quadrature encoder pairs, up to 30 kHz |
Output Resources
| Channels | Available signal types |
|---|---|
| 6 | High-side PWM or digital output with current feedback |
| 10 | High-side PWM or digital output |
| 4 | Configurable high-/low-side PWM or digital output |
| 2 | Independent H-Bridge outputs |
| 10 | High-side digital outputs |
PWM and Current Control
The SPL0601 provides configurable PWM, high-side, low-side, and H-Bridge outputs for controlling proportional valves, solenoids, motors, and other electrical loads.
6 Current-Feedback PWM Outputs
Six high-side PWM outputs provide current feedback from 0–3 A for monitoring and controlling connected loads.
Closed-Loop Current Control
Closed-loop current regulation from 100–1500 mA supports stable control when the load or supply voltage changes.
Configurable PWM Frequency
PWM frequency can be configured from 10–2000 Hz with an adjustable duty cycle from 0% to 100%.
High-/Low-Side and H-Bridge Control
Four outputs can operate as high- or low-side PWM channels, or be paired to form two independent H-Bridges.
Communication Interfaces
The SPL0601 combines CAN, Ethernet, RS232, and RS485 interfaces for communication between the controller and other electronic devices within a mobile machine control system.
3× CAN Interfaces
Three CAN 2.0A/B channels support communication speeds from 20 kbit/s to 1 Mbit/s, with a default baud rate of 250 kbit/s.
1× Ethernet Interface
The Ethernet interface supports TCP/IP and user-defined application-layer protocols. It can also be used for programming, debugging, and controller updates.
4× RS232 Ports
Four RS232 ports provide point-to-point serial communication with a maximum baud rate of 115200 bit/s.
1× RS485 Port
One RS485 port supports user-defined serial communication with a maximum baud rate of 115200 bit/s.
Protection and Diagnostics
The SPL0601 includes power monitoring, output protection, and internal diagnostic functions to help detect electrical and controller operating faults.
Voltage Monitoring
The controller monitors overvoltage and undervoltage conditions and provides an undervoltage cut-off function.
Output Protection
Digital output channels include short-circuit feedback, short-circuit protection, and overtemperature protection.
Input Protection
Input channels include protection against reverse power and ground connection.
Controller Diagnostics
A watchdog function, program diagnostics, and system self-diagnostics monitor controller operation.
| Operating voltage | 8–32 VDC |
|---|---|
| Short-duration overvoltage | 36 V for up to 10 seconds |
| Undervoltage detection | At or below 9 V |
| Undervoltage cut-off | At or below 7 V |

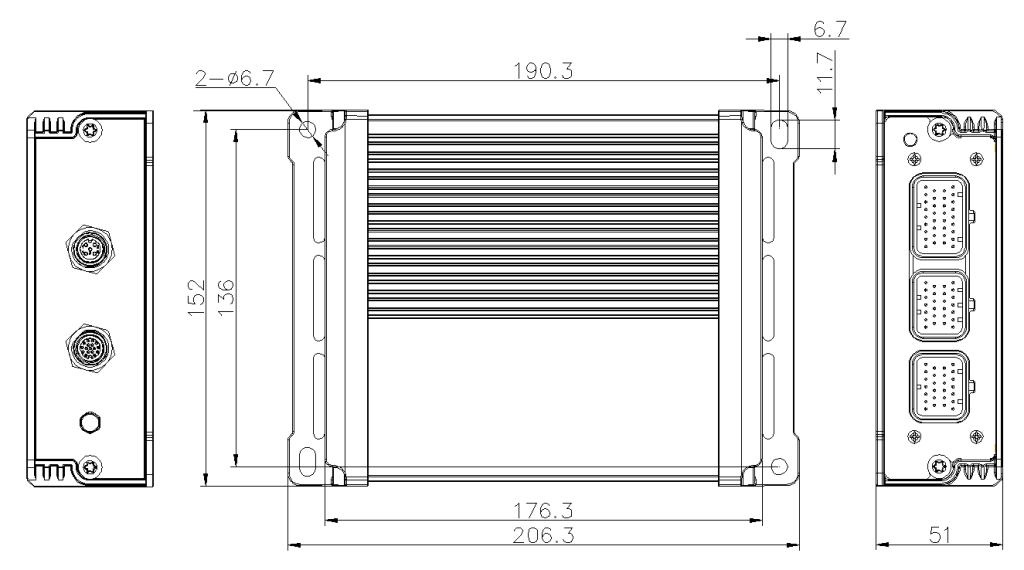

Dimensions
Application
1. Fire Pump Truck
Controls water pump speed, pressure, and valves. Monitors flow and tank levels. Ensures stable pump operation via CAN bus integration.
2. Aerial Ladder Truck
Operates hydraulic arms, monitors angles, and secures movements. Supports PWM outputs for lights, actuators, and stabilization systems.
3. Fire Command Vehicle
Manages lighting, communication, and monitoring devices. Ethernet and serial ports support command center functions.
4. Water Supply & Drainage Truck
Controls pumps and valves for water delivery or drainage. Gathers sensor data and allows remote dispatch via CAN network.
Frequently Asked Questions
How many I/O channels does the SPL0601 provide?
The SPL0601 provides 66 physical I/O resources, normally configured as 38 inputs and 30 outputs. Two physical channels are shared between input and output functions, allowing the controller to be configured with up to 32 outputs when required.
Can the SPL0601 control proportional valves?
Yes. It provides six high-side PWM outputs with current feedback and supports closed-loop current control from 100–1500 mA. PWM frequency can be configured from 10–2000 Hz.
Which CAN protocols does the SPL0601 support?
Its three CAN 2.0A/B interfaces support CANopen, SAE J1939, and user-defined protocols. CAN communication speed can be configured from 20 kbit/s to 1 Mbit/s.
Does the SPL0601 support encoder inputs?
Yes. Four frequency input channels can be configured as two quadrature encoder input pairs. The supported frequency range is up to 30 kHz.
Which programming platform is used?
The SPL0601 supports CODESYS 3.5 for application development, control-logic programming, debugging, and controller configuration.
What are the operating conditions of the SPL0601?
The controller operates from an 8–32 VDC supply and across a temperature range of −40°C to +85°C. Its die-cast aluminum enclosure is rated IP67.
