Heavy-Duty Electric Motors for Mobile Machinery
Table of Contents
In mining, tunneling, sanitation, and construction machinery, drive systems must deliver high torque output and long-term reliability. Traditional diesel and hydraulic power systems suffer from high energy consumption and complex maintenance, while air-cooled motors tend to overheat under continuous heavy load.
As a result, liquid-cooled motors with IP67 protection are increasingly becoming the mainstream choice for mobile machinery electrification.
Operating Conditions Analysis
Dust and Mud
Mining, tunneling, and construction environments generate extremely high dust levels. Equipment is constantly exposed to mud and moisture, requiring motors with fully sealed designs that comply with IP67/68 protection ratings.
Frequent Start-Stop & High Starting Torque
Mining trucks and sanitation vehicles operate in short cycles with frequent stops and starts. Motors must withstand inrush currents several times the rated value while maintaining stable torque output.
Wide Temperature Fluctuations
Ambient conditions can range from -40°C to +85°C, placing stringent demands on insulation systems and material stability.
Shock and Vibration
Loaders, tunneling machines, and special vehicles endure sustained vibration and shock. Motors require reinforced housings and high-durability bearings to ensure long-term stable operation.
Need a Heavy-Duty Electric Motor Solution?
SonnePower provides IP67 liquid-cooled motors for mining, tunneling, sanitation, construction, and special-purpose mobile machinery.
Key Motor Design Features
Protection Level
IP67 (IEC 60529): Completely dustproof and protected against 30 minutes of immersion at 1 m depth.
Comparison: Standard industrial motors (IP54) fail quickly under mud or high-pressure washing.
Cooling Method
Liquid-Cooled Design (IC 3W7 / IEC 60034-6): Coolant directly removes heat from stator and windings, enabling continuous full-load operation.
Advantage: Compared to air-cooled motors, liquid-cooled motors achieve 30–50% higher power density, delivering more output in compact spaces.
Torque & Efficiency
High Torque Density: Output of 4–6 Nm per liter, ideal for confined mobile machinery layouts.
Efficiency: Meets IE4 / IE5 Super Premium standards, reducing overall vehicle energy consumption by 10–15%.
Insulation & Service Life
Insulation Class H (180°C) with VPI (Vacuum Pressure Impregnation) enhances dielectric strength and thermal stability.
Lifetime: Designed for 20,000+ operating hours, suitable for 24/7 duty cycles.
Functional Safety
Compliant with ISO 26262 / ISO 13849 safety standards, supporting STO (Safe Torque Off) and diagnostic functions.
Meets safety integrity requirements for SIL / PL levels in mining and off-highway applications.
Comparison with Traditional Solutions
| Feature | Hydraulic System | Air-Cooled Motor | Liquid-Cooled Motor (IP67) |
|---|---|---|---|
| Torque Control | Poor precision, slow response | Limited control accuracy | Precise, fast dynamic response |
| System Efficiency | ~70–80% | ~85–90% | ~92–96% |
| Cooling Capacity | Low, relies on oil circulation | Overheats under heavy load | High-efficiency liquid cooling |
| Maintenance Needs | Frequent, prone to leaks/seal wear | Moderate | Low-maintenance, long life |
| Environmental Fit | Risk of fluid leakage | Limited (often IP54) | IP67 dustproof & waterproof |
| Regulatory Fit | High fuel use, high emissions | Somewhat improved | Zero-emission, electrification ready |
Application Cases

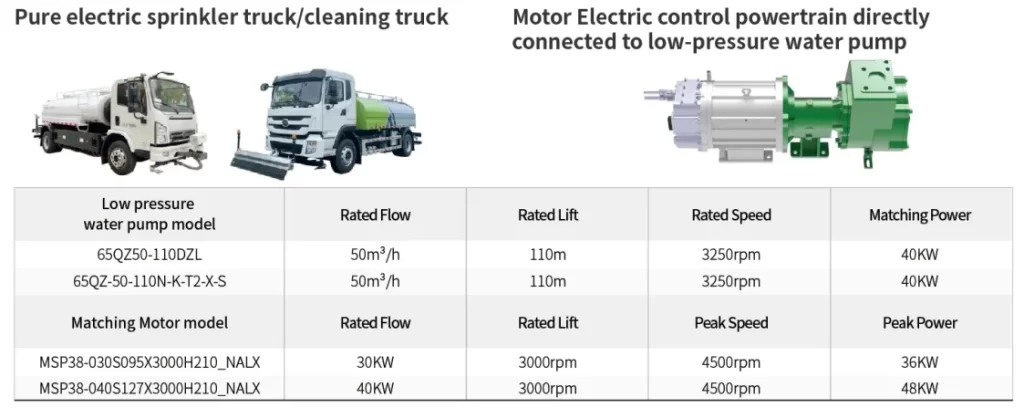

Pure Electric Sprinkler / Cleaning Truck
The liquid-cooled motor is directly coupled with a low-voltage water pump, supporting a flow rate of 50 m³/h and a head of 110 m. It delivers stable and efficient output for municipal watering and road cleaning.

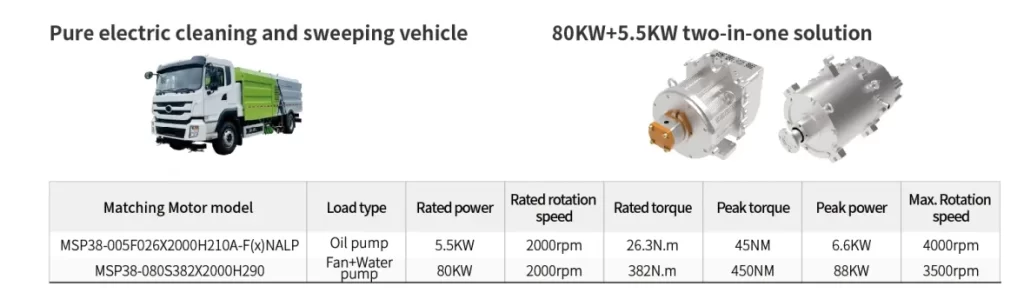

Pure Electric Sweeper Truck
A dual-motor configuration (80 kW + 5.5 kW) simultaneously drives the hydraulic pump, fan, and water pump, providing high torque and reliability to meet demanding sanitation operations.

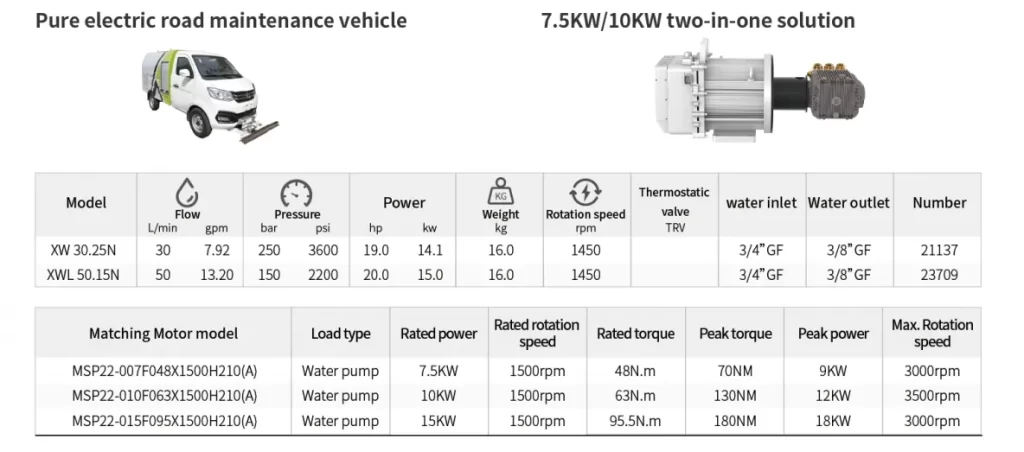

Pure Electric Road Maintenance Vehicle
A 7.5 kW / 10 kW liquid-cooled motor powers the high-pressure water pump, ensuring stable water pressure output for road washing and maintenance tasks, with low noise and minimal maintenance.

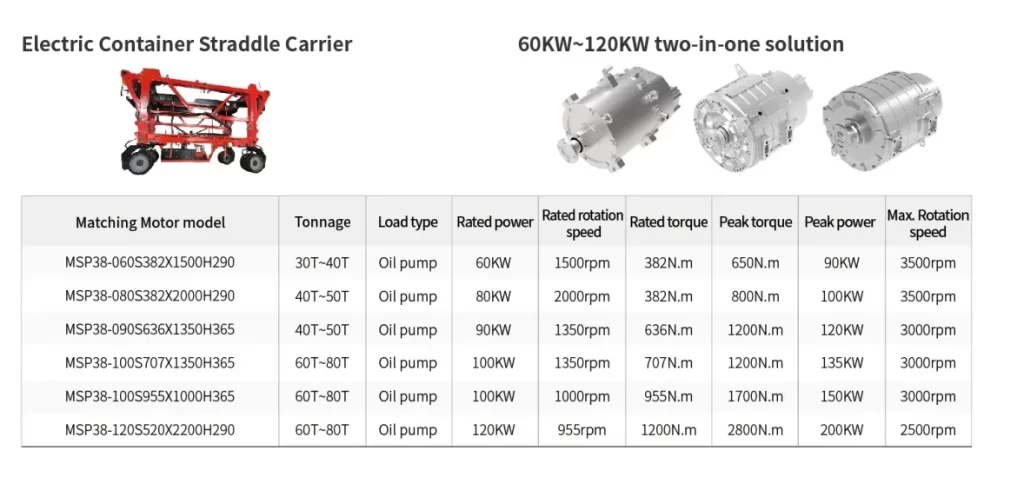

Electric Container Straddle Carrier
Liquid-cooled motor solutions from 60 kW to 120 kW cover 30–80 ton vehicles, delivering up to 1200 N·m rated torque and 200 kW peak power to support heavy-duty port logistics operations.
Conclusion & Outlook
As mining and construction industries accelerate electrification, heavy-duty IP67 liquid-cooled motors are steadily replacing traditional hydraulic and air-cooled solutions. They not only comply with global environmental and emission regulations but also significantly enhance equipment reliability and operational efficiency.
Future development directions include:
Higher voltage platforms (600–800 V DC) to support large-scale mobile equipment.
Integrated e-axle systems to improve space utilization.
Deep integration with intelligent control systems, enabling remote diagnostics and automated operations.
