Product Description

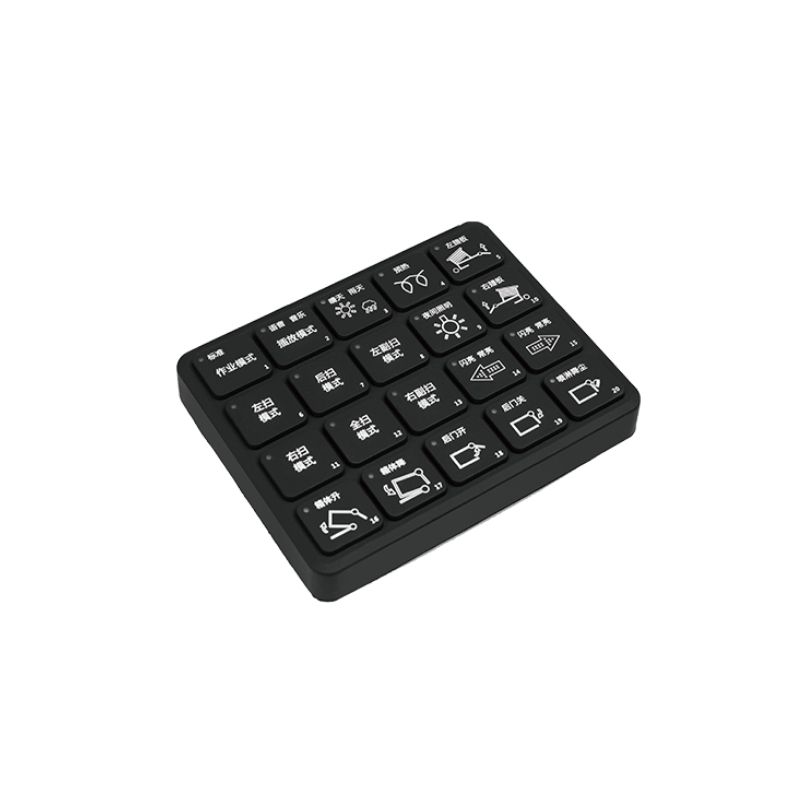

SPM-KEYP-A20 is a rugged CAN bus keypad with 20 customizable silicone keys, RGB status LEDs, and 1 high-side output (DOH). Designed for construction and off-road machinery, it supports user-defined CAN protocols, IP65/IP67 protection, and operates in -40°C to +85°C. Compact, durable, and ideal for harsh environments.

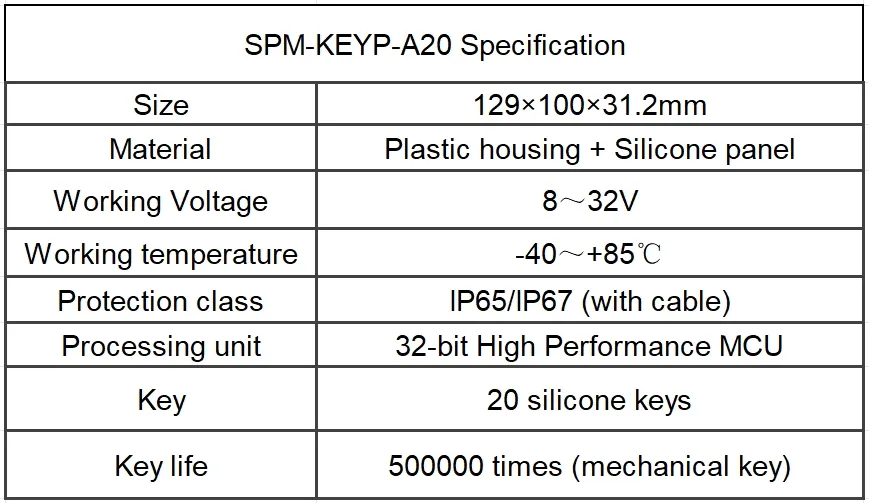

Specification

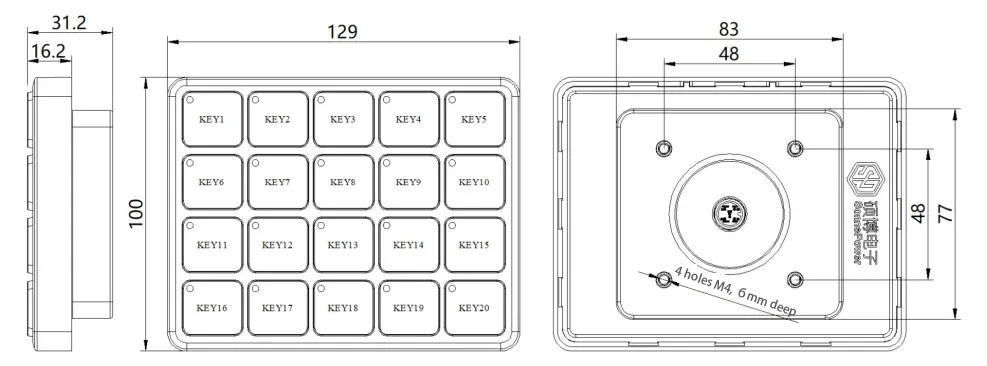

Dimensions
Application
The SPM-KEYP-A20 CAN bus keypad is ideal for a wide range of rugged mobile and industrial applications, including:
-
Construction Machinery: Excavators, bulldozers, wheel loaders
-
Agricultural Equipment: Tractors, harvesters, sprayers
-
Municipal Vehicles: Street sweepers, garbage trucks, fire trucks
-
Mining Equipment: Drilling rigs, underground loaders, haul trucks
-
Forestry Machinery: Log skidders, harvesters, forwarders
-
Utility & Service Vehicles: Cranes, aerial work platforms, tow trucks
-
Special Purpose Vehicles: Military vehicles, airport ground support equipment
Its robust design, high protection rating (IP65/IP67), and customizable keys make it suitable for harsh outdoor environments, vibration-prone systems, and distributed control architectures.
